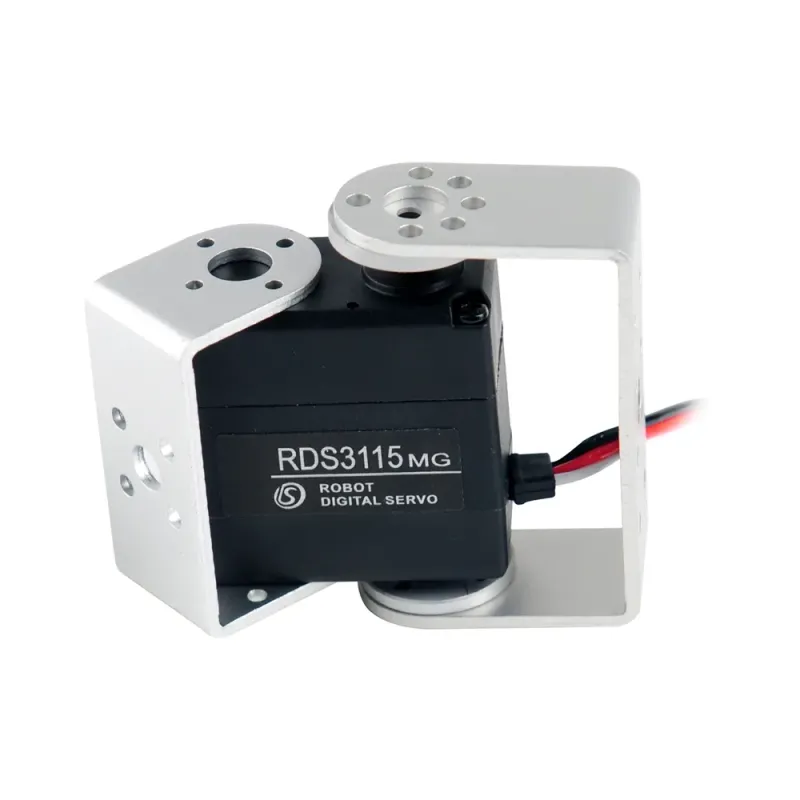

RDS3115 Servo Motor 17kg 180 Degrees

The RDS3115 is a robust digital servo with a 180-degree angle, specifically engineered for robotics applications and motors that demand power and precision. With a torque reaching up to 17 kg/cm³ and compatibility with a broad voltage range, it is ideal for dual-axis robotic joints, mechanical arms, and custom automation systems.

Main Features

• Rotation Angle: 180 degrees
• Operating Voltage: DC 4.8 volts – 7.2 volts
• Stall Torque: 13.5 kg·cm at 4.8 volts, 15 kg·cm at 6.0 volts, 17 kg·cm at 7.2 volts
• Speed: 0.16 seconds/60 degrees at 4.8 volts, 0.14 seconds/60 degrees at 6.0 volts
• PWM Range: 500 – 2500 microseconds
• Current Draw: >150 milliamps

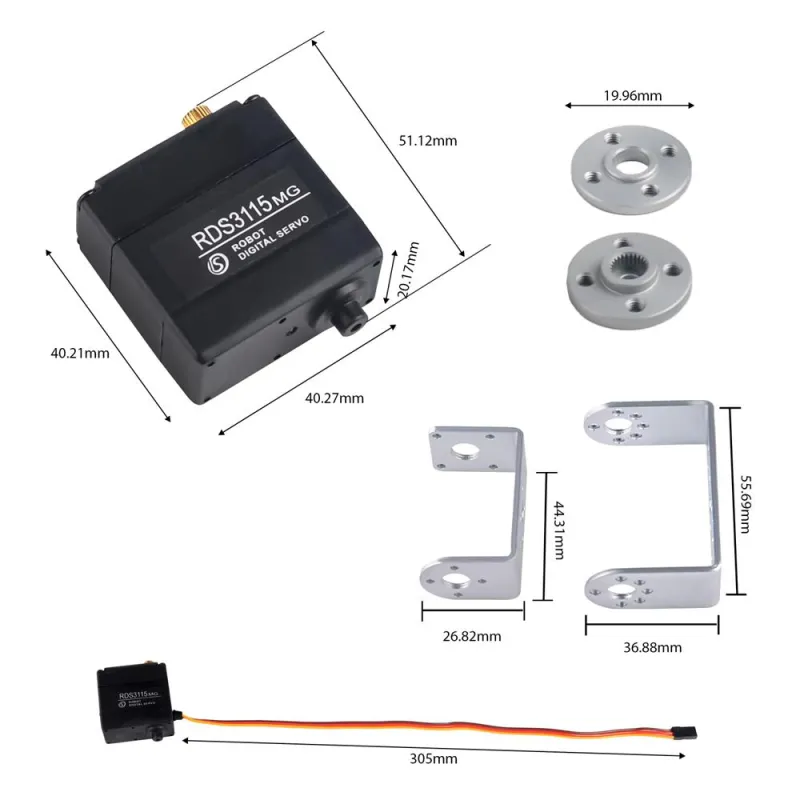

• Dimensions: 40 × 20 × 40.5 mm
• Weight: 60 grams

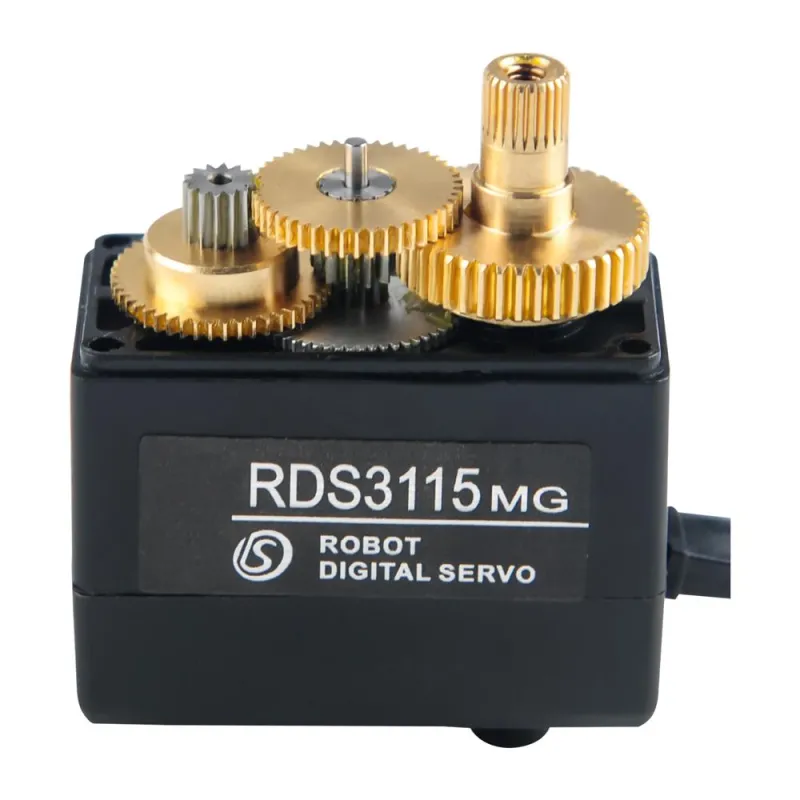

• Gear Type: 25T spline
• Compatibility: Futaba Junior, Sanwa, Hitec

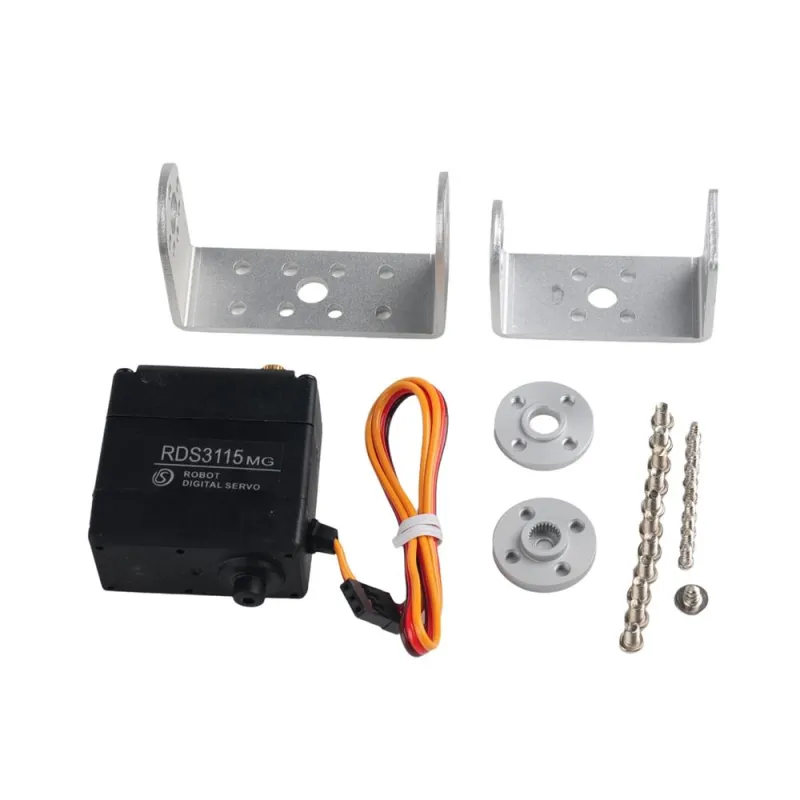

Package Includes

• 1 × RDS3115MG Digital Servo
• 1 × Long U-shaped Holder
• 1 × Short U-shaped Holder
• 1 × Screw Package

Perfect for robotic arms, dual-axis motors, and high-precision motion control projects.
