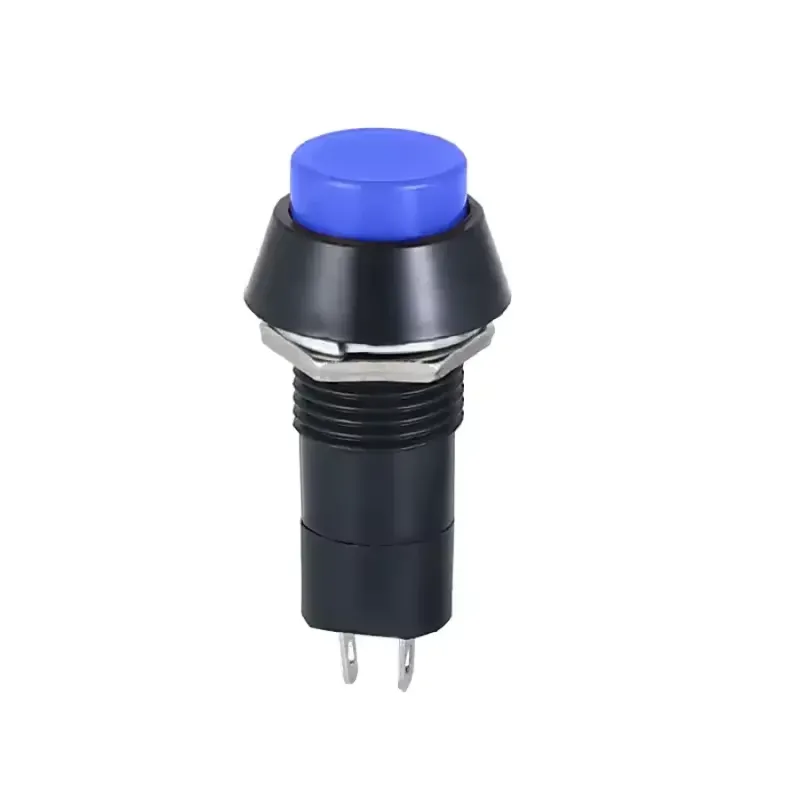

PBS-11B 12mm Push Button, Momentary On/Off, 3 Ampere - Blue

The PBS-11B momentary push button is a commonly used type in electronic circuits. This type of button completes the electrical circuit only when pressed, and upon release, the electrical circuit opens again.

Specifications:

• Type: Push Button Switch
• Model: PBS-11B
• Contact Type: 1 NO (Normally Open)
• Voltage: AC 250V 3A

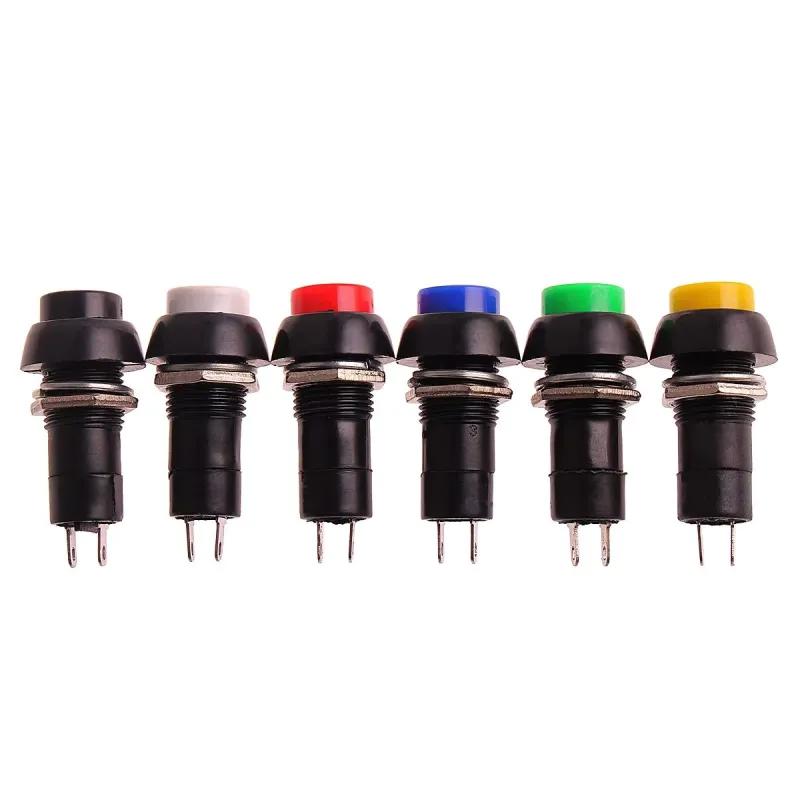

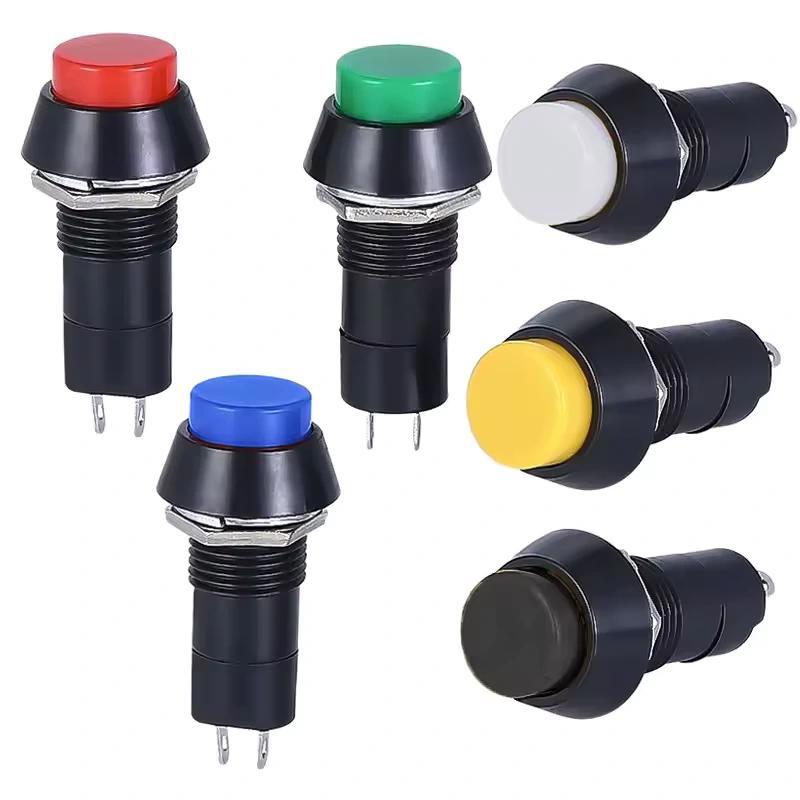

• Color: Red / Green / Yellow / White / Blue
• Terminals: 2 Pin

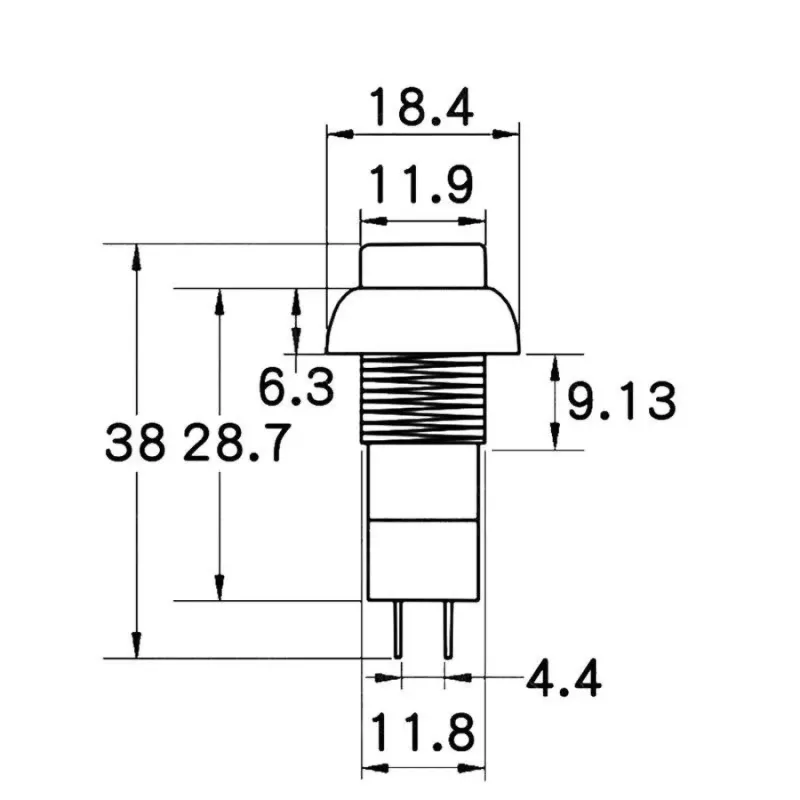

• Switch Height: 32.5mm
• Button Diameter: 12mm
• Fixed Hole: 16.5mm
• Operating Temperature Range: -25 to 55 degrees Celsius
• Operating Humidity: 45 to 85% Relative Humidity

Functions:

PBS-11A Self-locking function: Press to close and press again to open
PBS-11B Reset function: Press to close and release to open

Package Includes:

1 x PBS-11B (Momentary) Push Button Switch 240V AC 3A
