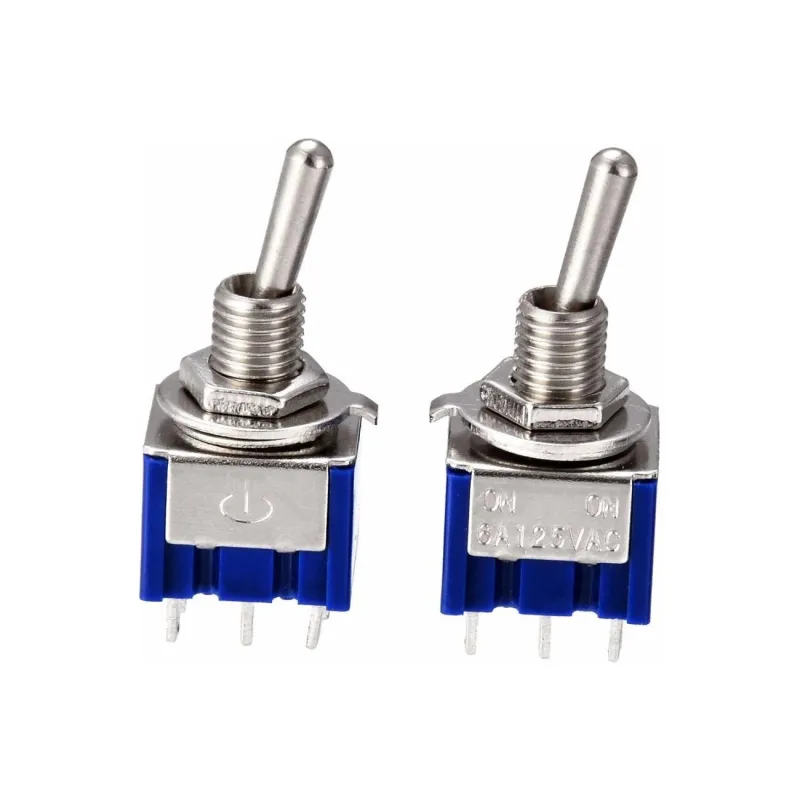

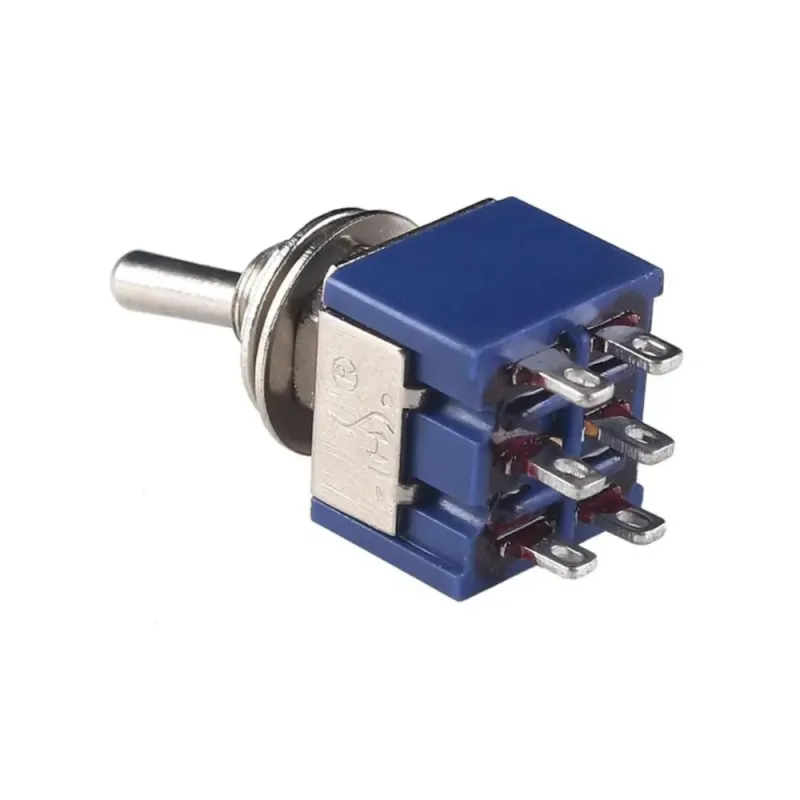

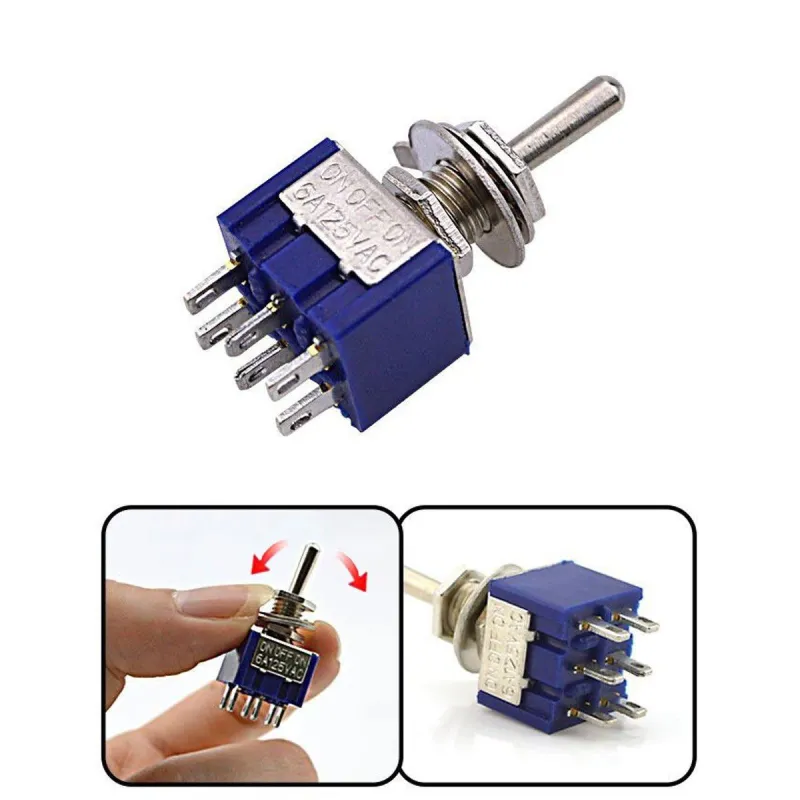

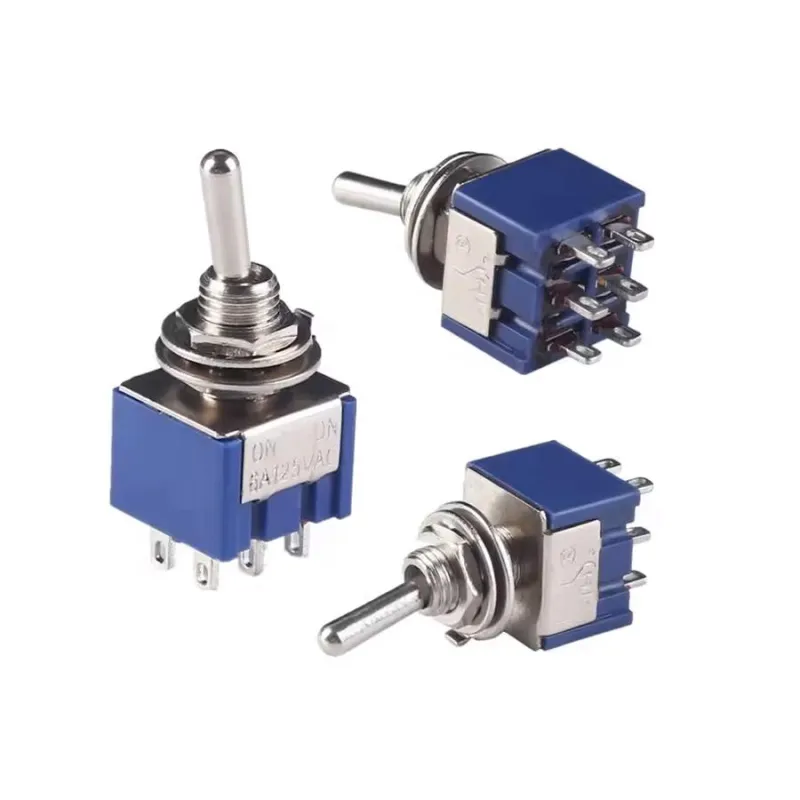

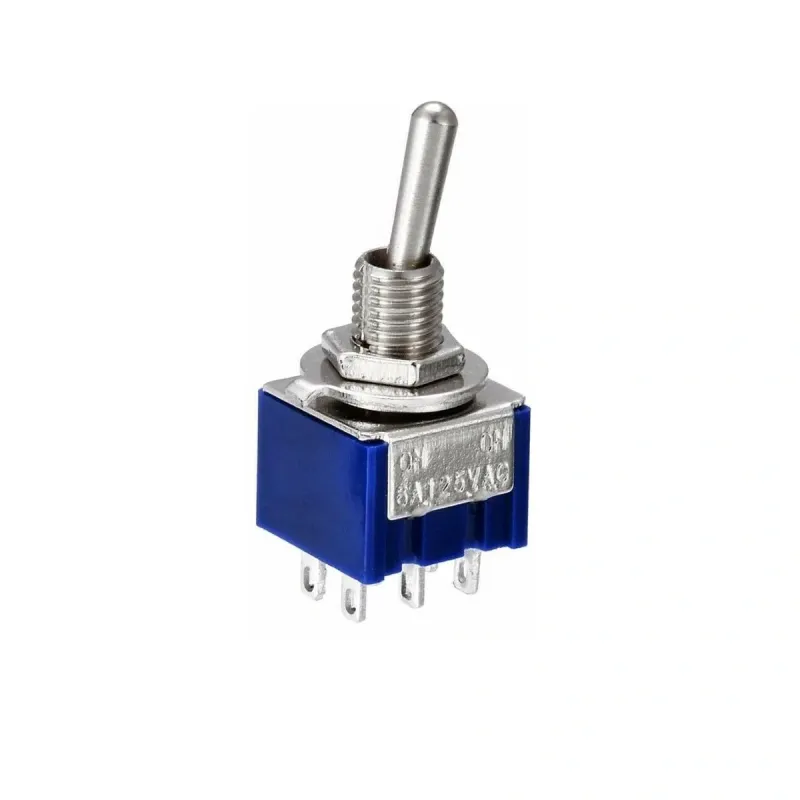

MTS-202 Toggle Switch 250V 3A DPDT ON-ON

The MTS-202 Toggle Switch is a compact and dependable DPDT (Double Pole Double Throw) switch with a 2-position ON-ON configuration. This non-momentary switch allows continuous switching between two separate circuits, making it an ideal component for both low and high voltage applications such as lighting systems and motor control.With 6 pins and no center position, the MTS-202 provides stable toggling in either direction. The switch is designed with a sturdy construction and simple mounting mechanism using a 6mm screw diameter, making installation easy in control panels, electronic devices, or DIY projects.

Technical Specifications:

• Model: MTS-202
• Switch Type: DPDT (Double Pole Double Throw)
• Operation: ON-ON (2 fixed positions)
• Rated Voltage & Current: AC 125V 6A / AC 250V 3A
• Pin Count: 6 Pins
• Mounting Hole Diameter: 6mm
• Weight: 12.8g
• Center Position: None (not momentary)

Perfect for use in toggle control systems where consistent position switching is needed, the MTS-202 offers durability, precision, and straightforward installation in a wide range of electrical setups.
