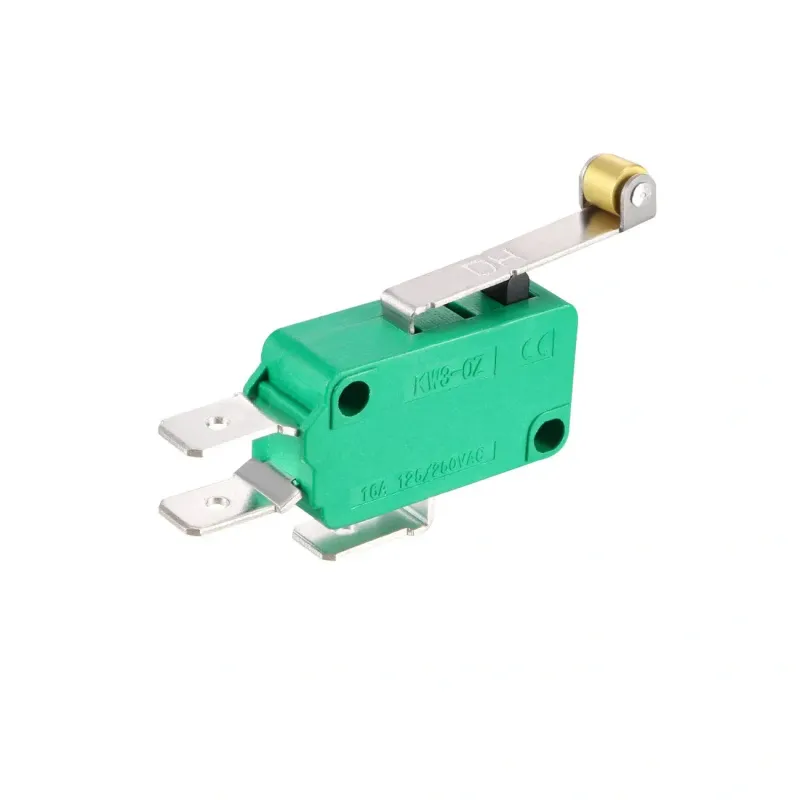

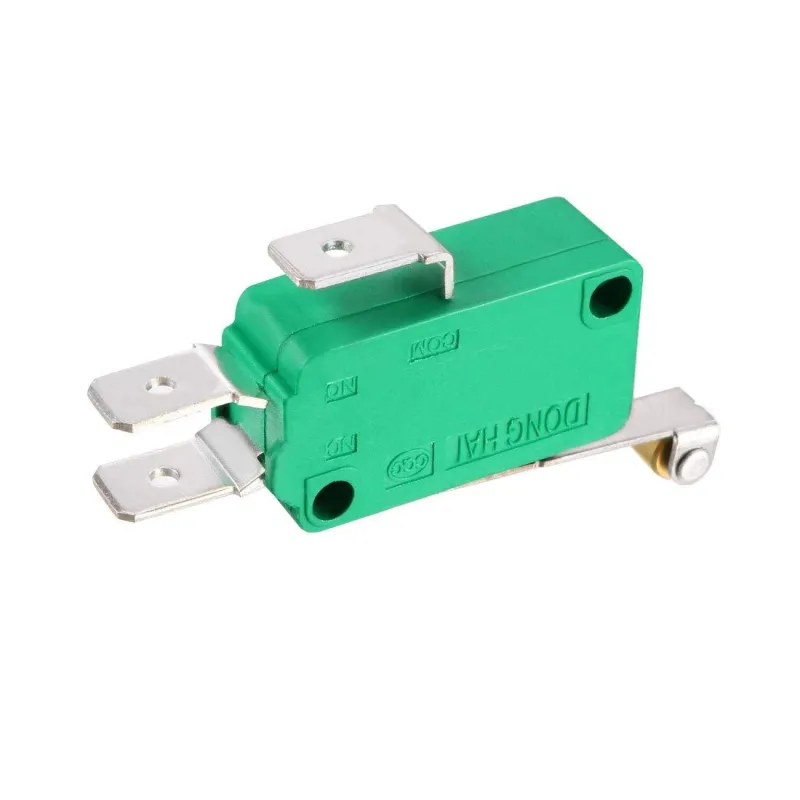

KW3-OZ 16A 125/250VAC Roller Rod Type SPDT NO NC Micro Limit Switch

The KW3-OZ 16A 125/250VAC micro limit switch, featuring a roller lever type SPDT NO NC, is typically employed in a variety of applications. These include electronic devices and equipment, vending machines, communication equipment, vehicle electrical systems, and electrical tools and appliances.

Specifications:

• Rated Load: 16 Amps 125 / 250 VAC
• Operating Speed: 0.1 mm to 1 m/s
• Contact Resistance: Maximum 15 mΩ (initial)
• Insulation Resistance: Minimum 100 mΩ (at 500V DC)
• Dielectric Strength: 1000 VAC at 50/60 Hz for one minute
• Service Life: Minimum 100,000 cycles at full load (electrical); 10,000,000 cycles (mechanical)
• Operating Temperature: -25 to +80 degrees Celsius
• Contact Configuration: SPDT NO + NC
• Number of Pins: 3

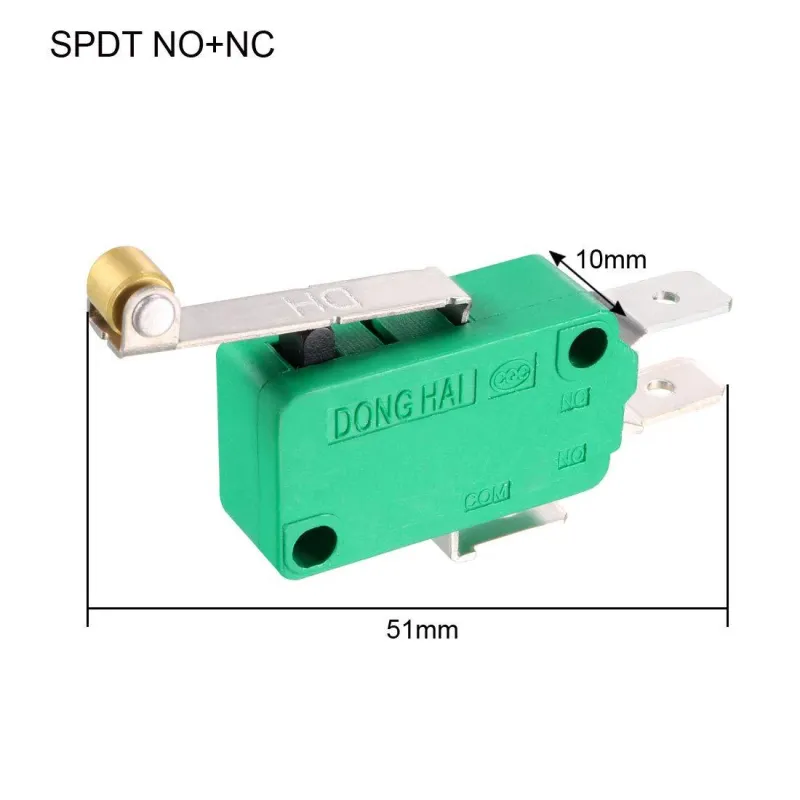

• Overall Dimensions: 51 × 22 × 10 mm (2.01 × 0.87 × 0.39 inches) (Length × Width × Height)
• Total Weight: 17 grams
