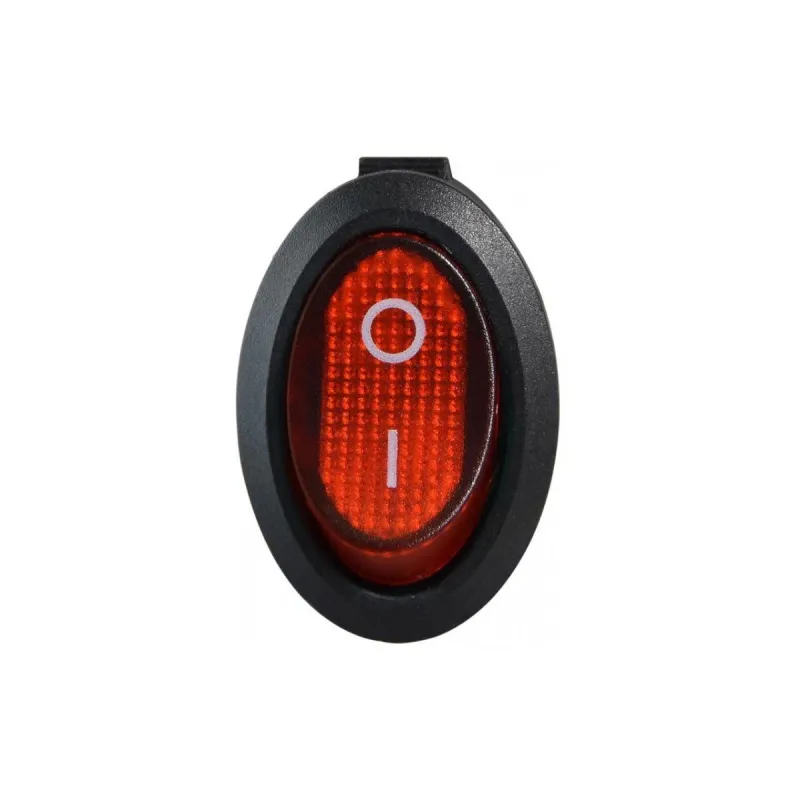

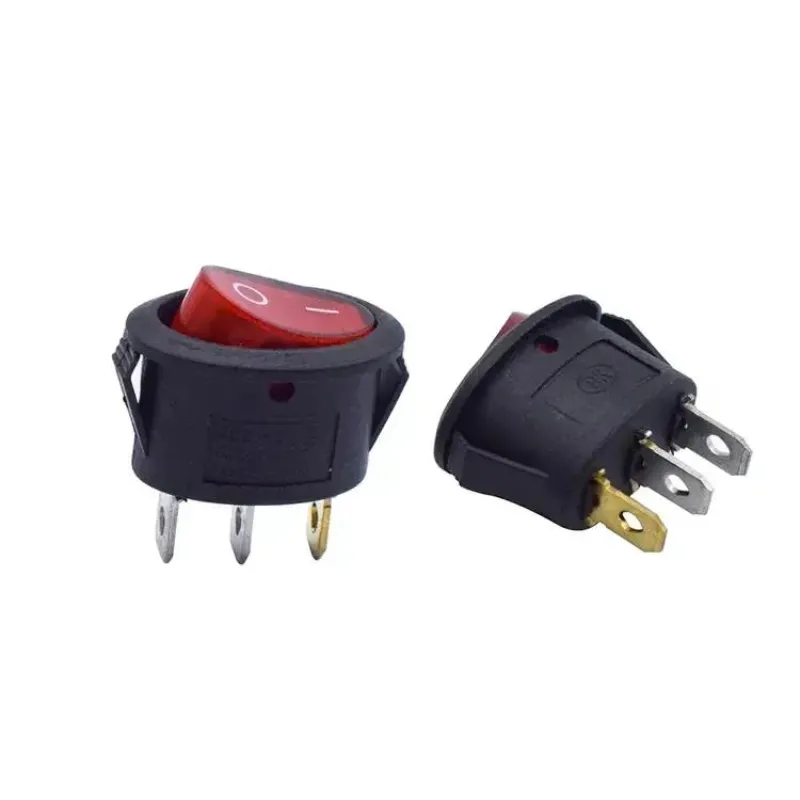

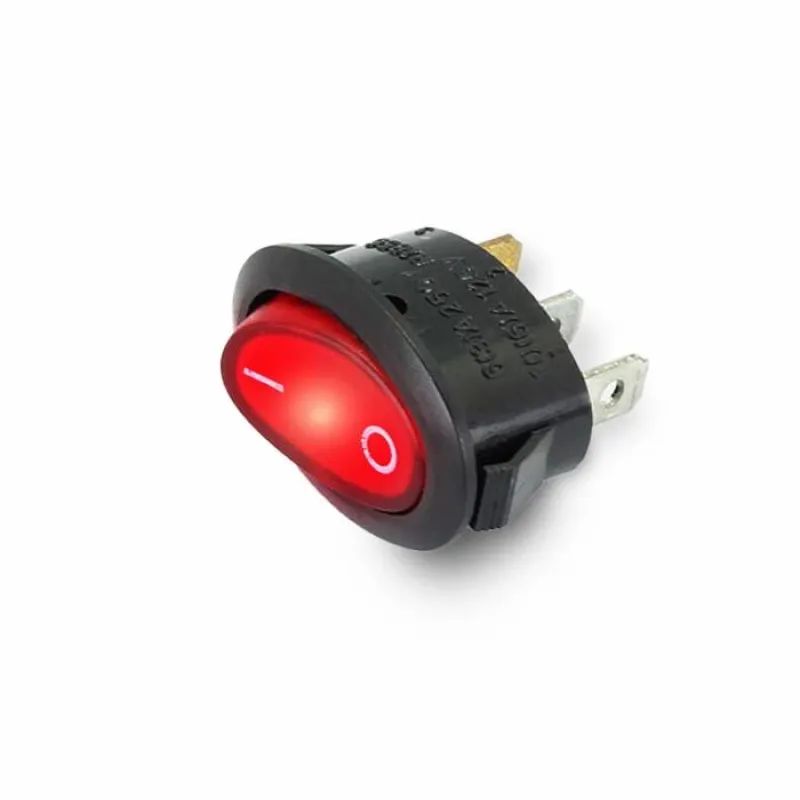

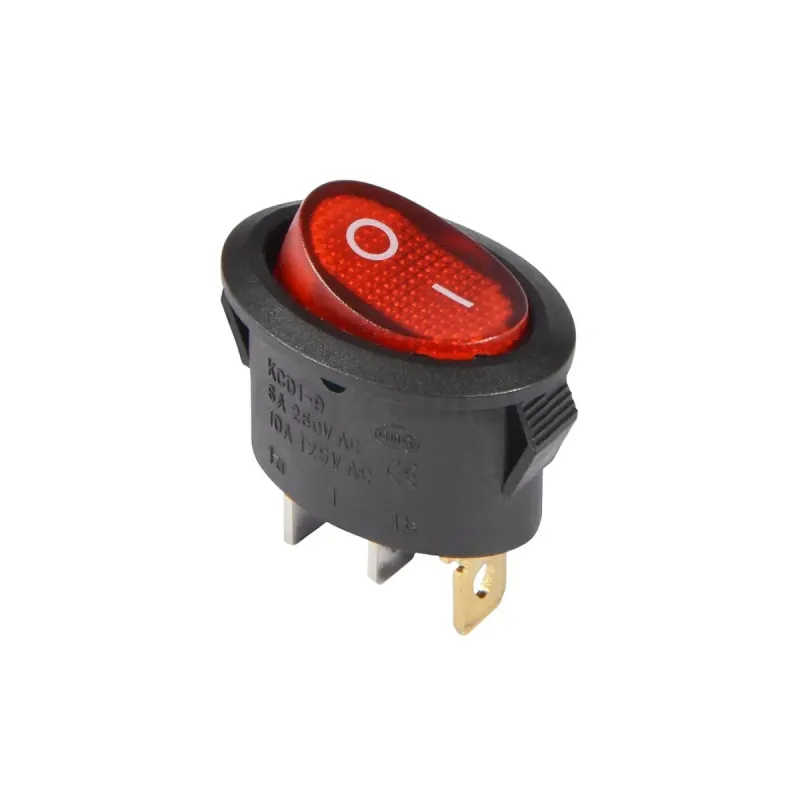

KCD1-9-101N Lighted Elliptic Rocker Switch 250V 6A SPST ON-OFF 3 Pin - Red

The KCD1-9-101N LED Rocker Switch is a compact, high-performance switch, engineered for a broad range of applications. With its Single Pole Single Throw (SPST) contact configuration and ON-OFF operational design, it is versatile and easy to use. The switch features a transparent button that comes in a variety of colors including red, green, yellow, blue, and white, encased in a standard black housing made from durable Nylon 66 material. It is designed with 3 pins and equipped with brass terminals that are silver-plated for enhanced durability.This robust switch boasts a rating of 10A 125VAC/6A 250VAC, a maximum contact resistance of 35mOhm, and a temperature range of -25C to +85C. It also offers an insulation resistance of 100mOhm min (500VDC), a dielectric strength of 1500VAC for 1 minute, and an electrical life of >= 10,000 cycles. Furthermore, it has a mechanical life of >= 100,000 cycles, testifying to its reliability and longevity. The switch is certified by CE, CQC, and SGS and is available for OEM or ODM.

Features:

• Single Pole Single Throw (SPST) contact configuration
• ON-OFF switch operation
• Transparent button available in red, green, yellow, blue, or white
• Standard black housing made from Nylon 66 material
• Brass terminals with silver plating
• 3 pins
• Rating of 10A 125VAC/6A 250VAC
• Contact resistance of 35mOhm max
• Temperature range of -25C~+85C
• Insulation resistance of 100mOhm min (500VDC)
• Dielectric strength of 1500VAC for 1 minute
• Electrical life of >= 10,000 cycles
• Mechanical life of >= 100,000 cycles
• Certified by CE, CQC, and SGS
