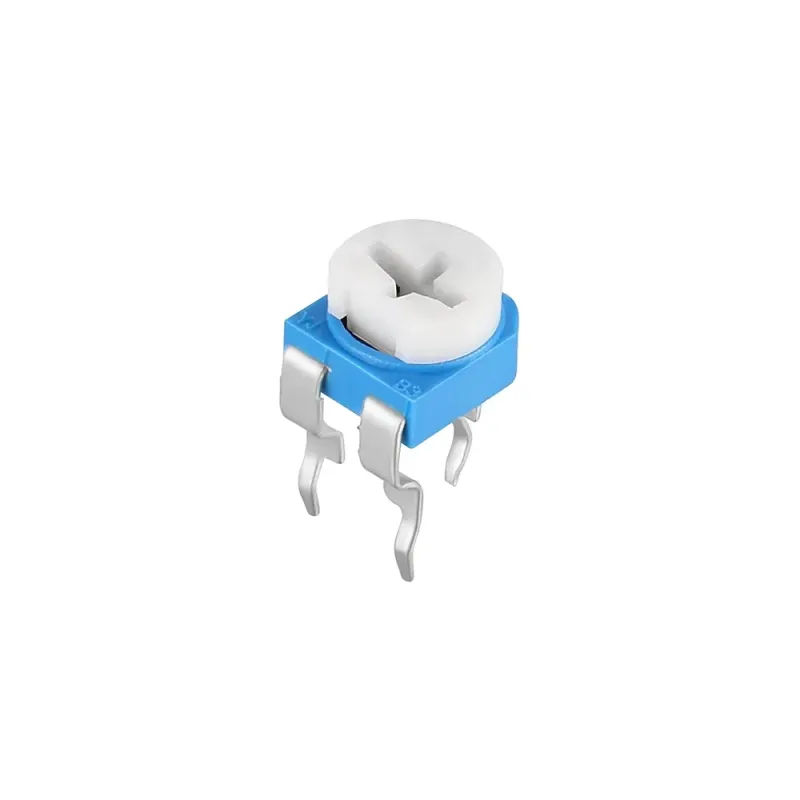

100K Trimpot RM065 Small Adjustable Voltage Scale 6mm

The RM065 series Trimpots, also known as adjustment resistors, are small, adjustable resistance components. They are typically soldered onto printed circuit boards and are utilized for fine-tuning in electronic circuits.


General Specifications

• Type: Single-turn trimpot
• Mounting Style: Vertical or horizontal (usually vertical)
• Pin Count: 3 pins (2 terminals + 1 wiper)
• Adjustment Method: Top or side adjustment via a screwdriver
• Body Size: Approximately 6mm x 6mm
• Power Rating: Typically 0.1W – 0.25W
• Resistance Range: 100 Ω to 1 MΩ (varies by model)
• Tolerance: Typically ±20%
•

Common Applications

• Precise voltage or current adjustment
• Sensor calibration
• Timing circuits (e.g., RC timers)
• Voltage reference adjustment
• Input signal sensitivity control

Advantages

• Compact size, saving board space
• Low cost and widely available
• Ideal for simple, low-power circuits

Disadvantages

• Limited accuracy due to single-turn design
• Potential oxidation over time at contact points
